Demonstration of the b4Modular synthesizer Series 7 by Malte Steiner. The system features 2 analog Oscillators / LFO, one digital oscillator with 6 different modes, oscillator bank with 6 square waves, triple clock module, 3 slew limiters, a lowpass filter, tone control filter, wave folder, one ring mod / wave folder thingy, 5 VCAs, crossfader, mixer, 2 pressure sensors, a trigger button, unity and gates mixer.

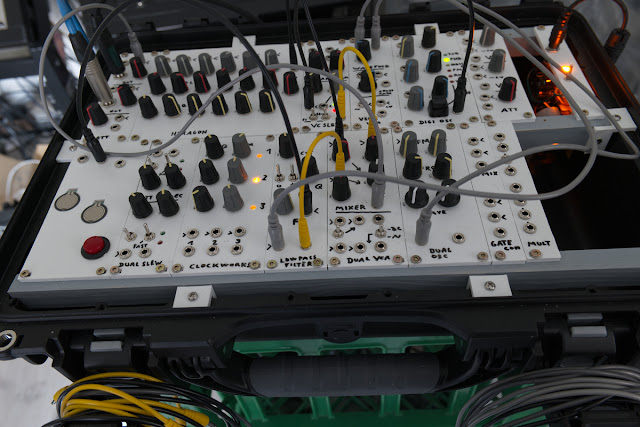

"My diy modular synthesizer in a suitcase which I developed between 2024 and 2025. The goal was to develop a cheap modular system mainly for live concerts which is repairable and can go into Checkin Luggage without much worries (I would never do that with my Eurorack). So far I used that system for several concerts of my projects Elektronengehirn and Notstandskomitee in Berlin and Helsinki, and local Jam sessions here in Aalborg. It is build in a Nanuk 923 case which can remove the lid, the rails are made of wood and wood screws, the front plates are 3D printed. Everything works fine and the concerts were great, but learnings so far:
- the frame is rigidly attached to the case so any shock impacts directly the system. So far one of my 3D printed brackets broke which didn't hinder a concert. I redesigned it to be more sturdy and it never happened since. But the rigid design is a bit questionable and I rethink the approach.
- the PCBs have been fixed to the frontplates with common metal screws and nuts. From the travel one nut unscrewed itself because of the vibration. I replaced it with nylon screws and nuts which have more grip. It remembers of a story from a Berlin company which created custom modular synths for Tangerine Dream back then. They tested the sturdiness against vibration by dragging those flight cases over a copplestone street at night until police stopped them asking what the hell they were doing.
- I hit a limit with my power supply design with a self made voltage splitter and an additional 7805 on the positive rail. It can't handle many microcontroller based modules before it collapses. In future systems I use another approach for the power supply which is much more stabile."
